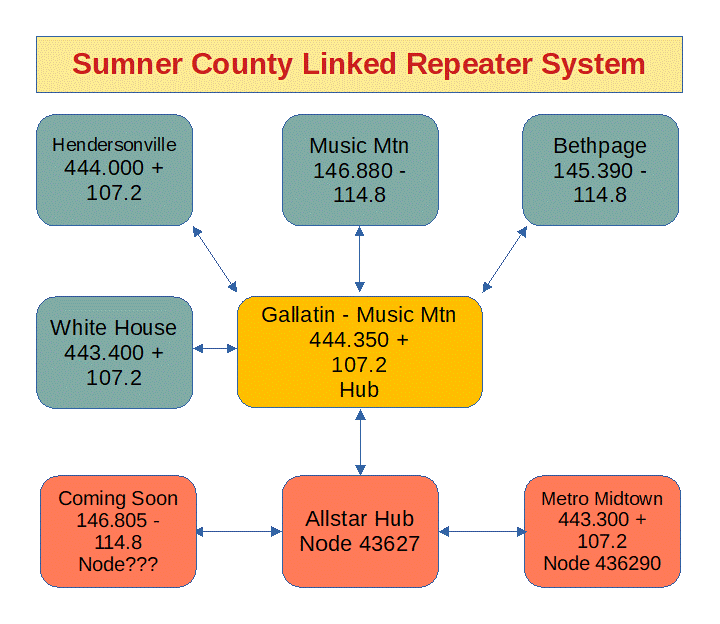

Linked Repeater System
The linked system is part of an interstate linked repeater system. The system is open to all hams, but we ask that you observe proper
repeater etiquette while using the system.
Each Repeater has its own Identifier, which is transmitted throughout the network after you release your PTT. The CW letter that is transmitted is ( ) Below.
Music Mountain (5 miles North of Gallatin, TN)
146.880- (114.8 PL) Kenwood TK-750 + Amp. 1010 feet MSL, Antenna at 100 feet. 92 Watts. Omnidirectional. (M )444.350+ (107.2 PL) Kenwood TK-850, RX antenna at 180 Feet, TX antenna at 120 Feet. 1010 feet MSL. 35 Watts. Omnidirectional. (HUB Repeater)
Center Point Road (Hendersonville, TN)
444.000+ (107.2 PL) Kenwood TK-850 930 MSL, Antenna is at 120 feet. Directional to the south. 48 watts. (H )
Mutton Hollow (Bethpage, TN)
145.390- (114.8 PL) Kenwood TK-750 1000 feet MSL, Antenna at 180 feet. 101 watts. Omnidirectional. (B )
White House (White House, TN)
443.400+ (107.2 PL) Kenwood TK-850 800 feet MSL, Antenna at 180 feet. 25 watts. Directional to the west. (W )
Metro Midtown (Nashville, TN)
443.300+ (107.2 PL) Motorola Quantar, 18 watts, Omnidirectional
Coming Soon
146.805- (114.8 PL) Motorola XPR-8400, 45 watts Omnidirectional
P25 Repeater
Narrow band audio (2.5 KHz deviation) required. Repeaters are mixed mode, but digital takes priority over analog.
Mutton Hollow (Bethpage, TN)
443.750+ (107.2 PL) Motorola Quantar at 100 watts, Antenna 1000 ft MSL (180 ft). Slightly directional to the southwest.
Digital Mobile Repeater DMR
442.9125+ CC1 Music Mountain (5 miles North of Gallatin, TN)
Worldwide 91 – Static Slot 1
All other talkgroups are on Slot 2
All other talkgroups are on demand with a 15 minute timer.
